Description
Scan-to-/File/Share Cloud Solution

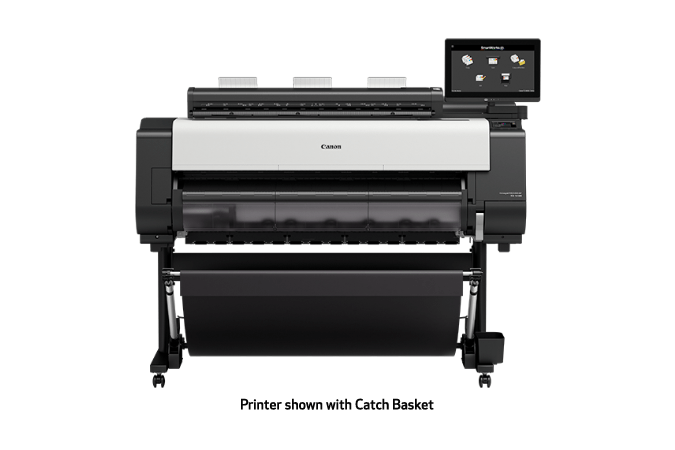

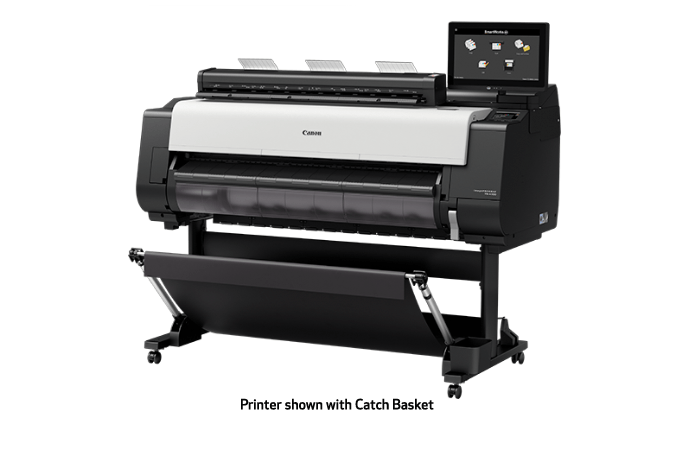

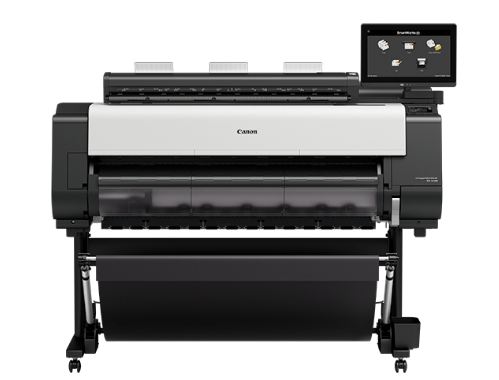

The TX-4100 MFP Z36 large format printer is designed to provide fast, high-quality, large format image capture-to-output. More than just the sum of its parts, it is the versatility of the product that helps make it stand out. This multi-component system gives the user the opportunity to be more productive by being able to print and scan at the same time. The open architecture of the computer can be used to load additional programs, among other things. The AIO has an all new intuitive GUI design for simplified printer management.
The imagePROGRAF TX-4100 MFP Z36 includes:
-
TX-4100 44-inch Printer
-
Z36 Scanner
-
15.6″ All-In-One touchscreen computer
-
Computer Stand
-
TX Stacker or Catch Basket
SmartWorks MFP Software
With an all-new GUI, the new SmartWorks MFP software brings an updated look and feel that enables the operator to easily execute large-format scanning and copying from the touchscreen AIO. With a simple to use interface and “scan-it-once” ability, this software allows for efficient batch scanning and helps to create high quality scanned images. You can scan to PDF, TIFF and JPEG file formats. SmartWorks MFP software is now more efficient than ever before.
Features:
-
Scan-to-Multipage PDF
-
Scan lengths of up to 315” (26 ft) for PDF and JPEG files, and up to 598” (50 ft) for TIFF files
-
Ability to add custom presets with one-touch retrieval for those often-used settings
-
Image enhancements for white point adjust, black point adjust, sharpen, mirror, and invert
-
Fine detail scan feature
-
Enhanced administrator rights
-
Full integration with Canon Direct Print Plus software
Z36 Scanner
The light weight and compact Z36 scanner incorporates a SingleSensor Technology Assembly1, which helps provide consistent and better color accuracy with more detail in the shadows and highlights than a staggered CIS array scanner.
Features:
-
1200 dpi maximum optical resolution, 9600 dpi maximum resolution
-
Image scanning of up to 36” wide, fits documents up to 38” wide
-
Scanning speed of up to 13” per second monochrome, and up to 6” per second color
-
USB 3.0 interface, 75 Mbytes / sec transfer rate
-
Scan a document up to 1.0 mm thick
-
Face up / Front load / Rear exit
-
Straight paper path
The MFP Z36 includes an AIO controller for centralized management:
-
Files can be moved via a USB storage device
-
Files can be shared over a network via the Ethernet card
-
Statuses such as the amount of ink remaining in the printer can be obtained
-
Get information of media loaded in the printer
-
Printer maintenance can be executed
-
Resettable to factory defaults
-
Confirm with the user whether to save setting changes when quitting a function
All-in-One 15.6″ Touchscreen Computer
A computer is included with the MFP Z36 system:
-
Files can be moved via a USB storage device
-
Files can be shared over a network via the Ethernet card
Intelligent Media Handling
The Intelligent Media Handling feature allows the user to simply place a roll in the opened drawer and slide in the media from the front of the printer with ease. The printer automatically detects media type, width, and length, for simplified user handling.
Media Output Options
TX Stacker
Available for purchase with the TX Series, this stacker can stack up to 100 sheets of documents of mixed sizes, including ARCH C, ARCH D, or ARCH E/E1 sizes and is built for high productivity and increased flexibility. The variety of configurations that the TX Stacker can be positioned into helps to make prints easily accessible to pick up for on-the-go printing. When not in use, the TX Stacker can be folded up to conserve space.
Multi-positional Catch Basket
Available for purchase with the TX Series, the multi-positional basket can be freely adjusted to enable various output positions and options:
-
Catch Basket
-
Flatbed Stacking
-
Slope (can be used to display a print)
Optional 2nd Roll Unit
The optional Multifunction Roll System is a versatile media handling solution system that enables either a second roll of media to be loaded on the printer, or can be configured as a bi-directional media take-up unit. The optional second roll unit allows for the instant switching between different media types or the use of two rolls of the same paper for up to 190 D-sized prints per hour. As a take-up unit the operator can choose to use this option to rewind longer printouts, with the print surface on the outside or on the inside of the roll.
Security Feature
The TX-4100 supports the security features often required for large-scale business segments, such as finance institutions or government and military. Print with ease knowing your files are more protected with Canon’s advanced security technology:
Secure Communication
-
802.1x Authentication
-
SNMPv3
-
SSL/TLS
-
IPsec
Functionality Restrictions
-
Panel Lock by Remote UI
-
Role-based access control
-
Front-panel access lock
-
Remote UI Multilevel
-
Hide IP from Panel
-
Panel Access Control
-
Job Storage and PIN Printing
Secure Storage
-
Self Encrypting Hard Disk
-
Secure Disc Erase (Conforms to U.S. Department of Defense standard DoD5220.22-M)
-
Secure File Erase*
The following functions can be disabled in administrator mode:
-
Direct USB Thumb Drive Printing
-
Internet Connection
-
FTP and Telnet communication protocols
-
Job Log Look-up
LUCIA TD Pigment Ink Set
The TX-4100 features the 5-color TD pigment ink set. This ink was formulated to produce fine lines and sharp text on both inkjet and non-inkjet paper. Combine this pigment ink with water resistant media and you have a printed drawing that can withstand many outdoor conditions, especially outdoor job sites such as construction sites. Available in 160 ml, 330 ml, and 700 ml ink tanks3, you have the ability to purchase a combination of ink sizes based on your printing volume. 1,650 ml of ink ships standard with the TX-4100.
Sub Ink Tank System
The Sub-Ink Tank System allows virtually all of the available ink in a tank to be used before having to replace it, helping to eliminate wasted ink. The empty tanks can also be replaced on-the-fly without stopping the printer. This is extremely useful during your long print jobs.
Print Head PF-06
The 6-channel PF-06 Print Head is engineered to work with the printer’s high-speed carriage and high-frequency ink ejection to help facilitate fast printing. This printer boasts Canon’s print-head technology that lays down ink with outstanding speed and accuracy. The PF-06 print head incorporates a nozzle orifice shape to help minimize mist spray, producing clean lines and text. The high-precision, high-density print head, with a total of 15,360 nozzles, lays down 5 picoliter-size ink droplets that help produce sharp detail and excellent image quality. The result is consistently accurate 2400 x 1200 dpi output (max.) with fine lines that are accurate to ±0.10% and as thin as 0.02mm.
Borderless Printing
The TX-4100 supports borderless printing on all roll widths and custom widths as well as three sized borderless printing for a reduction in paper trimming.
L-COA Processor
Canon’s advanced print head technology achieves speeds up to 190 D-sized prints per hour4 on uncoated media. Powering these incredible print speeds is Canon’s L-COA processor, which controls the optimal ink layout helping to ensure high resolution output.
Direct USB Thumb Drive Printing
Direct USB thumb drive printing supports JPEG and PDF file formats. Simply load your files onto your USB drive, step right up to the printer and plug your USB drive into the port. The TX-4100 supports selected page preview. When printing a multi-page PDF file from a USB, the user can select a certain page on the operation panel and display it in a preview window.
Wi-Fi Compatible
Printing jobs quickly is critical on the work site and in the office. Wi-Fi connectivity can transfer technical drawing files and help speed up your workflow – perfect for high-volume printing. No Wi-Fi router is needed, which can provide greater freedom during installation. Wi-Fi connectivity is standard for the imagePROGRAF TX Series printers.
500GB Hard Drive
A built-in 500GB hard drive within the printer can increase productivity by relieving workload from the host computer, while providing a large capacity for print job data storage and retrieval.
DISCLAIMERS
Recycled paper and chlorine-free paper can be used with this product.
The imagePROGRAF TX MFP Z36 system contains multiple components, some of which are manufactured by third parties. To the extent that such third-party offerings come with limited warranties, those such limited warranties are hereby passed to the purchaser, and Canon shall have no obligation.
All speed measured on Plain Paper in Fast Q5 mode.
-
SingleSensor Technology Assembly means that multiple sensors are contained in one assembly device.
-
Canon products offer certain security features, yet many variables can impact the security of your devices and data. Canon does not warrant that use of its features will prevent security issues. Nothing herein should be construed as legal or regulatory advice concerning applicable laws; customers must have their own qualified counsel determine the feasibility of a solution as it relates to regulatory and statutory compliance. Some security features may impact functionality/performance; you may want to test these settings in your environment.
-
The 700ml ink tank is only available for service authorized partners.
-
Plain Paper, Fast (Q5) mode.
-
Wireless printing requires a working network with wireless 802.11b/g or 802.11n capability. Wireless performance may vary based on terrain and distance between the printer and wireless network clients.
-
For imagePROGRAF Printer Driver. For printing from PostScript applications such as Adobe Illustrator or QuarkXpress, please use a PostScript compatible RIP package.
